Liquid Storage Tank Food Grade Stainless Steel Tank Milk Storage Tank Honey Storage Tank Water Storage Tank

Basic Info.

Certification	ISO9001
Automatic Grade	Semi-Automatic
Application	Milk, Yogurt, Milk Powder, Cheese
Customized	Customized
Jacket	Steam Jacket or Water Jacket (Dimple Jacket)
Pressure	3bar to 15bar
Sheet Thickness	3mm - 12mm
Transport Package	Wooden Case in LCL, Container in FCL
Specification	500-20000L
Trademark	DEYI
Origin	Made in China
HS Code	8479820090
Production Capacity	200PCS/Year

Product Description

Stainless Steel Agitator Homogenizing Blending Cosmetic Industry Mixing Tank

Application:Use for dairy, juice, beverage, beer, and chemisty.


Structure characteristics: Made of single-layer, double layer or three layer stainless steel structure. Materials are all sanitary stainless steel. Humanized structure design and easy to operate. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation. Configuration of tank: Quick open manhole. Various types of CIP cleaners. Fly and insect resistant sanitary breathing cover. Adjustable triangular bracket. Dismountable materials input pipe assembly. Thermometer (According to customer requirements). Ladder (According to customer requirements). Liquid level meter and level controller (According to customer requirements ). Eddy-proof board Dimension Data:

It also can be made according to special requirements of customers. Tank Pictures:

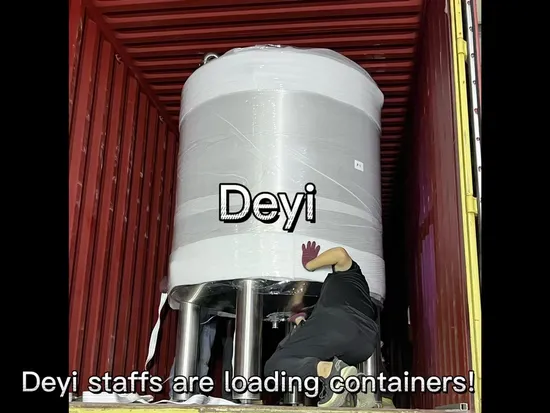

Packing & shipping information: Port: Shanghai Port or Ningbo Port,China MOQ: 1set Supply ability: 50 sets/month Payment terms: T/T,Western Union, Paypal, L/C Packaging: Wooden Case in LCL, Container in FCL Delivery time:Depends on quantity Shipping mode:By sea


Welcome to contact us for the Stainless Steel Cooling and Heating Mixing StorageTank.







More Products:
1.Stainless Steel Tanks Storage Tank Fermentation Tank Mixing Tank Warm-keeping Tank 2. Dairy machines Plate Heat Exchanger Fermenter Machine Concentrate Machine Homogenizer Sterilizing Euipment CIP System Stainless Steel Kettle 3 .Sanitary valve Sanitary Butterfly Valves Sanitary Check Valves Sanitary Ball Valvess Sanitary Reversal Valve Sanitary Diaphragm Valves Sanitary Sample Valves Sanitary Safety Valves Sanitary Control Valves Sanitary Relief Pressure Valves 4. Sanitary Pipe Fittings Sanitary Elbow Sanitary TeeSanitary Reducer Sanitary Cross Sanitary Triclamp Ferrule Sanitary Cap Sanitary Pipe Hanger Sanitary Tank Cleaning Ball Sanitary Hose Joint Sanitary Unions Sanitary Sight Glass Sanitary Strainer 5. Sanitary Manways Sanitary Round Manway without Pressure Sanitary Round Manway with Pressure Sanitary Square Manway Sanitary Oval Manway 6. Sanitary Pumps Sanitary Centrifugal Pump Sanitary Lobe Pump Sanitary Self Priming Pump Colloid Mill 7.Sanitary Tube Seamless Tube Weldless Tube 8.Sanitary Gasket Silicone/EPDM Gasket for Triclamp Silicone/EPDM Gasket for Union Silicone/EPDM Gasket for Butterfly Valve Silicone/EPDM Gasket for Manhole Cover

To get more Information at our websites: deyimachinery.en.made-in-china.com, deyimachinery.en.made-in-china.com

Effective volume	(D*H) Dimension of tank	(H) Total height	Diameter of inlet& outlet
(L)	(mm)	(mm)	(mm)
500	840*1000	2250	38
600	920*1000	2300	38
700	990*1000	2300	38
800	950*1220	2500	38
900	1010*1220	2500	38
1000	1060*1500	2850	51
1500	1160*1500	2850	51
2000	1340*1500	2900	51
3000	1410*2000	3400	51
4000	1620*2000	3450	51
5000	1810*2000	3500	51
6000	1980*2000	3550	51
7000	1930*2440	4000	51
8000	2060*2440	4000	51
9000	2180*2440	4050	51
10000	2300*2440	4050	51
12000	2270*3000	4600	51
15000	2530*3000	4700	51
20000	2640*3660	5400	51
